RIKULAU AUDAX TITANIUM FRAMESET

Audax Titanium 3/2.5V Frame: Built for Long-Distance Comfort and Practicality

The Audax Ti325 frame is purpose-built for long-distance road cycling, offering comfort, durability, and essential features tailored to the needs of endurance riders. Made with high-quality titanium and practical design choices, the Audax Ti325 is an affordable yet high-performance frame for serious touring and road cycling.

Key Features

3Al-2.5V Double-Butted Titanium Tubing:

• Constructed from 3Al-2.5V titanium, double-butted for optimal strength-to-weight ratio.


• Undergoes stress-relieving heat treatment to enhance durability, ensuring it can handle the demands of long-distance riding.

44mm Straight Head Tube:

• Designed with a 44mm inner diameter head tube that improves stiffness and cornering stability.


• Compatible with a 1 1/2-inch fork and adaptable to a 1 1/4-inch fork with a suitable headset for enhanced flexibility.

Standard BSA Bottom Bracket:

• Equipped with a BSA threaded BB shell, making it easy to maintain during long-distance trips.


• This standard bottom bracket interface offers compatibility with a wide range of bottom bracket systems.

Rack Mounts for Touring:

• Rack mounts on the seat stays and dropouts provide options for carrying gear, making it ideal for touring and commuting.

External Cable Routing:

• Fully external cable routing ensures easy maintenance and straightforward access for adjustments and repairs during long rides.

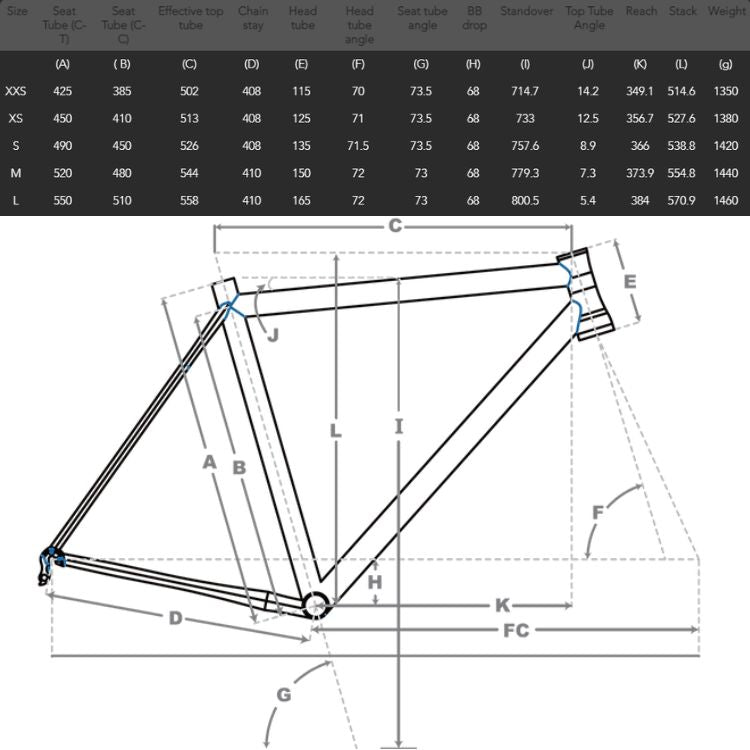

Frame Specifications:

Tubing Dimensions:

• Top Tube: 31.8 mm
• Seat Tube: 31.8 mm (fits a 27.2 mm seat post)
• Down Tube: 44 mm
• Seat Stay: 16 mm
• Chainstay: 22.2 mm

Fork Specifications:

• Fork Length: 365 mm
• Rake: 43 mm

Additional Specifications:

• Seat Post Diameter: 27.2 mm
• Dropout Type: 12 mm through-axle
• Disc Brake Mount Type: Flat mount

The Audax Ti325 is a no-nonsense, practical frame, offering the essential features for long-distance road cycling at an accessible price point. It provides a balance of comfort, reliability, and durability, making it a great choice for riders seeking a high-quality frame that meets the demands of extended rides.
